pfSense 2.4.4 selective Routing

  1. In order to setup pfSense selective routing, please set up OpenVPN first on your pfSense following our tutorial.

    Note: On the Tunnel Settings, mark the checkbox on Don't pull routes option.

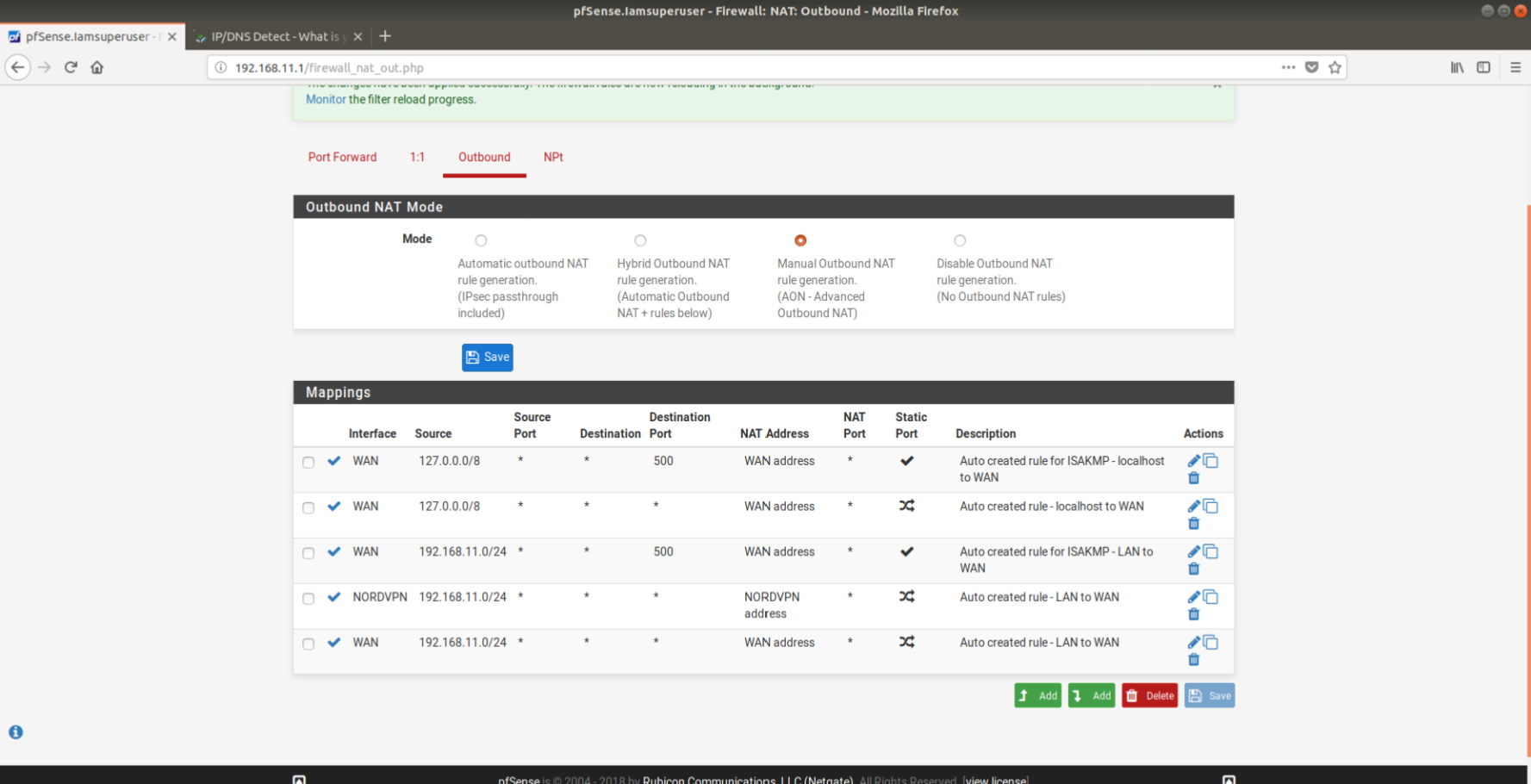

  2. Once you have finished the tutorial, navigate to Firewall → NAT → Outbound. You will need to readjust Mappings according to the screenshot:

    pfSense 防火牆 NAT 輸出頁面，手動輸出 NAT 模式，Mappings 表顯示 NORDVPN 介面項目

  3. Navigate to Firewall → Rules → LAN.

    1. Click to Add new interface. Change the following settings:

      Action: Pass
      Interface: LAN
      Protocol: Any
      Source: Single host or alias → device IP address you wish to exclude from VPN tunnel. (You can write a whole subnet, range of IP addresses as well)
      Gateway: WAN_DHCP

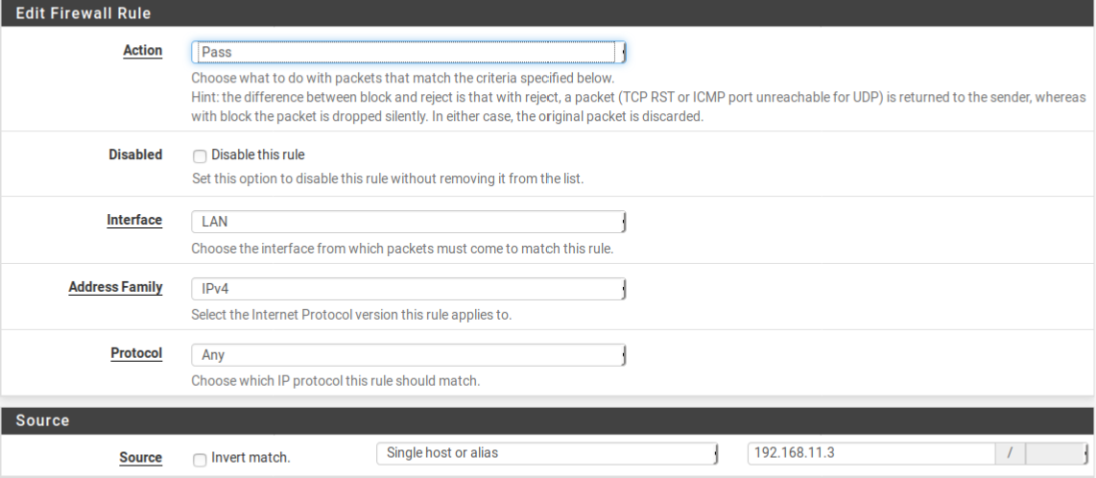

      pfSense Edit Firewall Rule 表單，Action 為 Pass，Interface 為 LAN，Protocol 為 Any，Source 設為單一主機 192.168.11.3

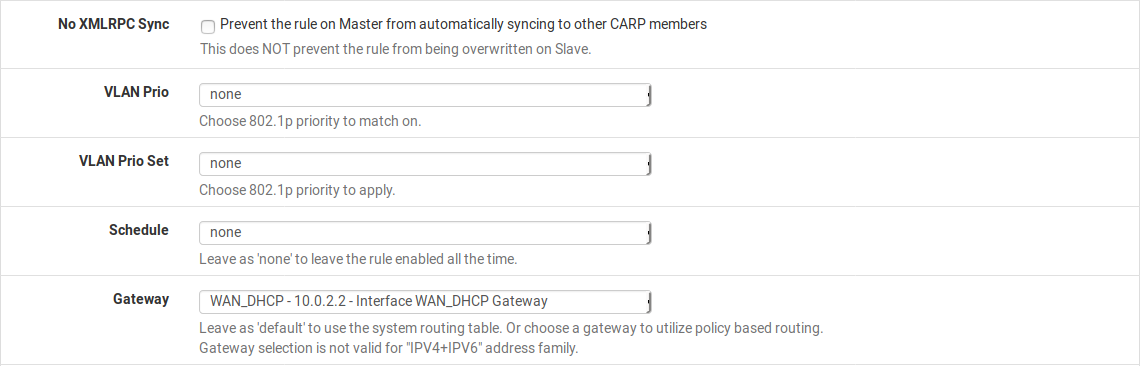

      pfSense Edit Firewall Rule 進階選項區段，Gateway 設為 WAN_DHCP

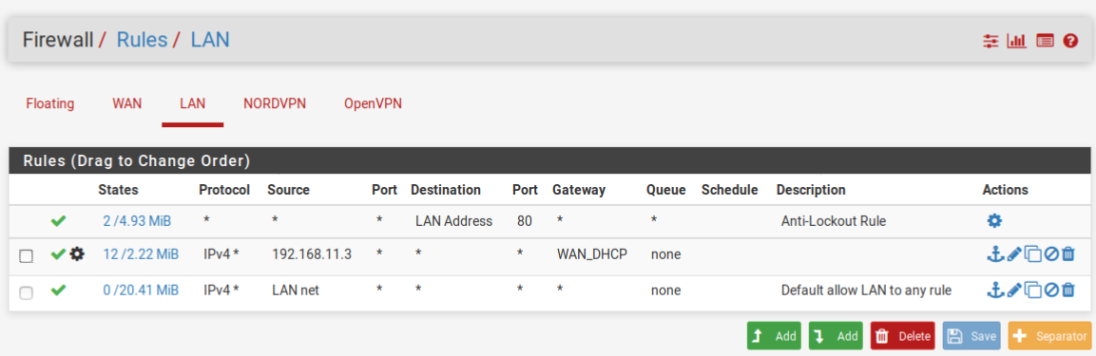

      Once you will save changes, your LAN rules should look similar to:

      pfSense 防火牆規則 LAN 標籤，顯示來源 192.168.11.3 的新規則，WAN_DHCP 閘道位於預設 NordVPN 規則上方

      Note: make sure this newly created rule is placed above any other rules.

  4. Save and apply changes. You may also need to reset the firewall to apply all changes, which you can do by:
  5. Navigate Diagnostics → States → Reset States → Check Reset the firewall state table → Reset.
  6. That is it, you can check our IP check website to see whether your devices are routed through ISP connection and rest of them via VPN tunnel.
