Here are the steps on how to set up OpenVPN on pfSense 2.4.4:
1. To set up VPN on pfSense 2.4.4, access your pfSense from your browser, then navigate to System > Certificate Manager > CAs. Select +Add.

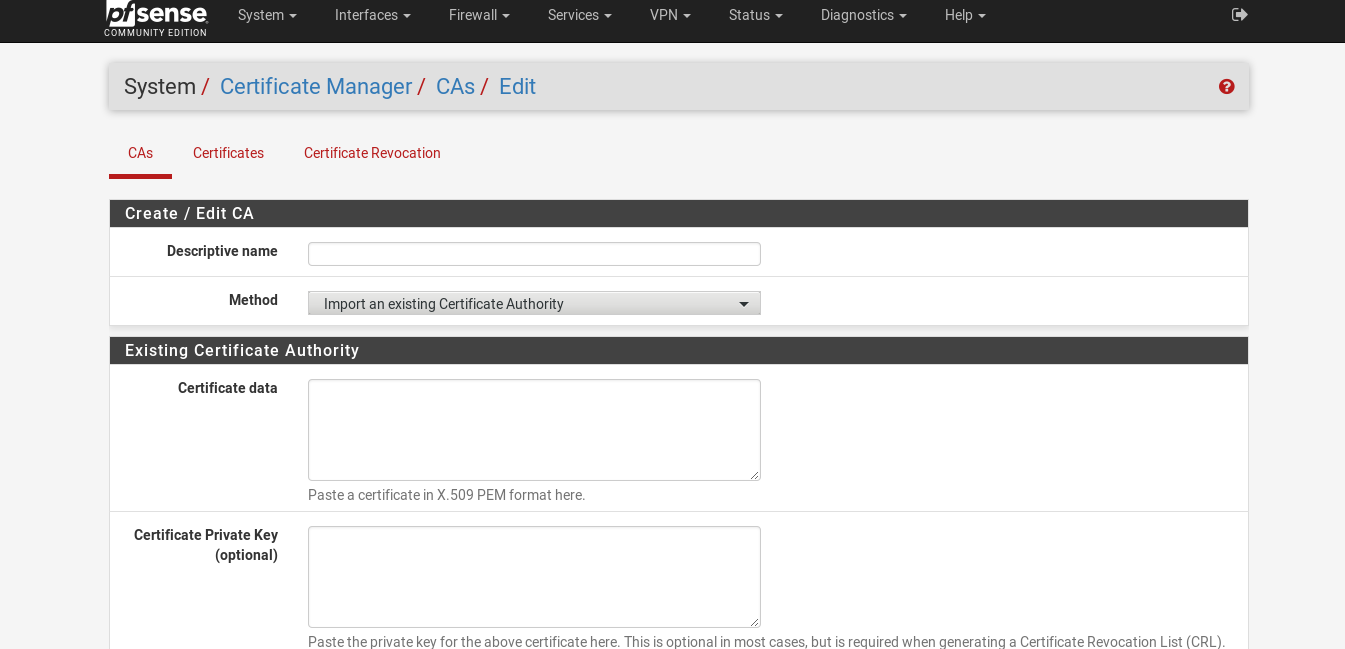

You should see this screen:

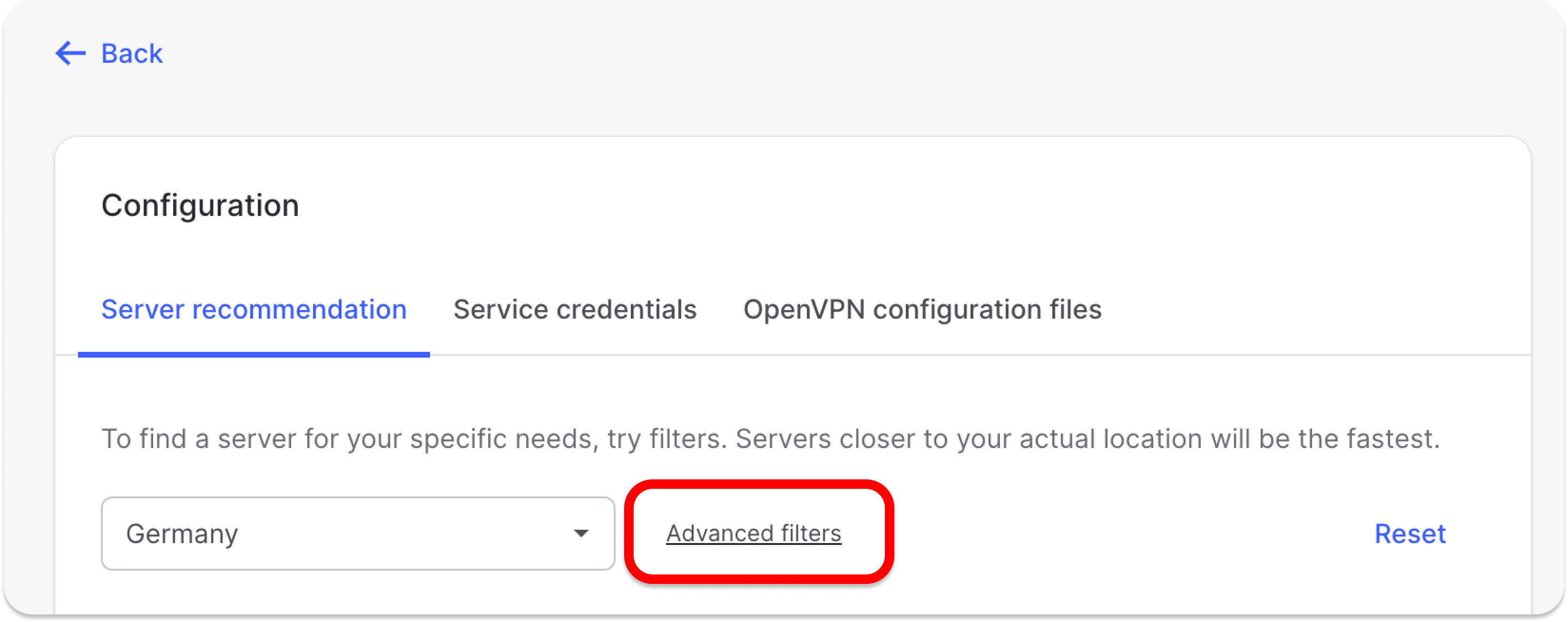

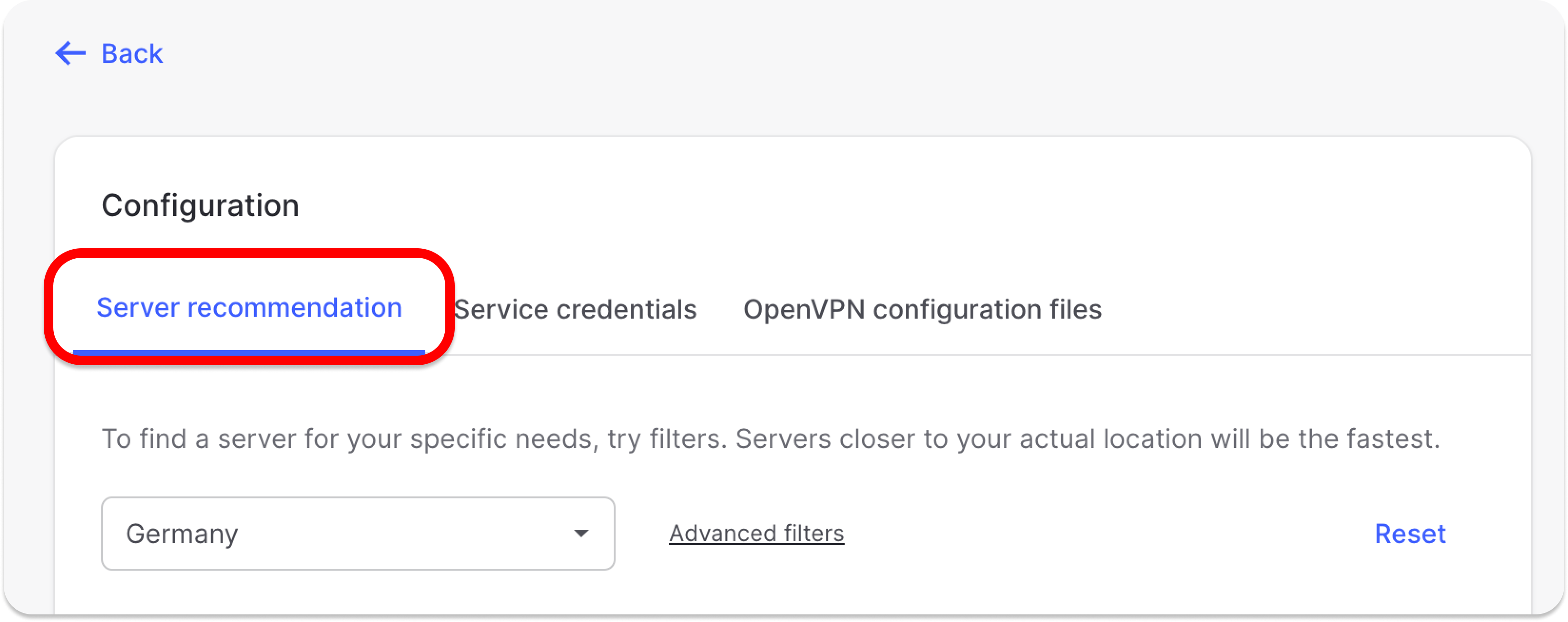

2. For this tutorial, we will configure our pfSense to connect to a server in the Netherlands, but you should connect to a server suggested to you at https://nordvpn.com/servers/tools/.
Fill in the fields as follows:
Descriptive Name: NordVPN_NL120_CA (we are using this name for the sake of this manual — you can use any name you like)
Method: Import an existing Certificate Authority
Certificate data:
-----BEGIN CERTIFICATE-----
MIIFCjCCAvKgAwIBAgIBATANBgkqhkiG9w0BAQ0FADA5MQswCQYDVQQGEwJQQTEQ
MA4GA1UEChMHTm9yZFZQTjEYMBYGA1UEAxMPTm9yZFZQTiBSb290IENBMB4XDTE2
MDEwMTAwMDAwMFoXDTM1MTIzMTIzNTk1OVowOTELMAkGA1UEBhMCUEExEDAOBgNV
BAoTB05vcmRWUE4xGDAWBgNVBAMTD05vcmRWUE4gUm9vdCBDQTCCAiIwDQYJKoZI
hvcNAQEBBQADggIPADCCAgoCggIBAMkr/BYhyo0F2upsIMXwC6QvkZps3NN2/eQF
kfQIS1gql0aejsKsEnmY0Kaon8uZCTXPsRH1gQNgg5D2gixdd1mJUvV3dE3y9FJr
XMoDkXdCGBodvKJyU6lcfEVF6/UxHcbBguZK9UtRHS9eJYm3rpL/5huQMCppX7kU
eQ8dpCwd3iKITqwd1ZudDqsWaU0vqzC2H55IyaZ/5/TnCk31Q1UP6BksbbuRcwOV
skEDsm6YoWDnn/IIzGOYnFJRzQH5jTz3j1QBvRIuQuBuvUkfhx1FEwhwZigrcxXu
MP+QgM54kezgziJUaZcOM2zF3lvrwMvXDMfNeIoJABv9ljw969xQ8czQCU5lMVmA
37ltv5Ec9U5hZuwk/9QO1Z+d/r6Jx0mlurS8gnCAKJgwa3kyZw6e4FZ8mYL4vpRR
hPdvRTWCMJkeB4yBHyhxUmTRgJHm6YR3D6hcFAc9cQcTEl/I60tMdz33G6m0O42s
Qt/+AR3YCY/RusWVBJB/qNS94EtNtj8iaebCQW1jHAhvGmFILVR9lzD0EzWKHkvy
WEjmUVRgCDd6Ne3eFRNS73gdv/C3l5boYySeu4exkEYVxVRn8DhCxs0MnkMHWFK6
MyzXCCn+JnWFDYPfDKHvpff/kLDobtPBf+Lbch5wQy9quY27xaj0XwLyjOltpiST
LWae/Q4vAgMBAAGjHTAbMAwGA1UdEwQFMAMBAf8wCwYDVR0PBAQDAgEGMA0GCSqG
SIb3DQEBDQUAA4ICAQC9fUL2sZPxIN2mD32VeNySTgZlCEdVmlq471o/bDMP4B8g
nQesFRtXY2ZCjs50Jm73B2LViL9qlREmI6vE5IC8IsRBJSV4ce1WYxyXro5rmVg/
k6a10rlsbK/eg//GHoJxDdXDOokLUSnxt7gk3QKpX6eCdh67p0PuWm/7WUJQxH2S
DxsT9vB/iZriTIEe/ILoOQF0Aqp7AgNCcLcLAmbxXQkXYCCSB35Vp06u+eTWjG0/
pyS5V14stGtw+fA0DJp5ZJV4eqJ5LqxMlYvEZ/qKTEdoCeaXv2QEmN6dVqjDoTAo
k0t5u4YRXzEVCfXAC3ocplNdtCA72wjFJcSbfif4BSC8bDACTXtnPC7nD0VndZLp
+RiNLeiENhk0oTC+UVdSc+n2nJOzkCK0vYu0Ads4JGIB7g8IB3z2t9ICmsWrgnhd
NdcOe15BincrGA8avQ1cWXsfIKEjbrnEuEk9b5jel6NfHtPKoHc9mDpRdNPISeVa
wDBM1mJChneHt59Nh8Gah74+TM1jBsw4fhJPvoc7Atcg740JErb904mZfkIEmojC
VPhBHVQ9LHBAdM8qFI2kRK0IynOmAZhexlP/aT/kpEsEPyaZQlnBn3An1CRz8h0S
PApL8PytggYKeQmRhl499+6jLxcZ2IegLfqq41dzIjwHwTMplg+1pKIOVojpWA==
-----END CERTIFICATE-----
Press Save.
3. Navigate to VPN > OpenVPN > Clients and press +Add.

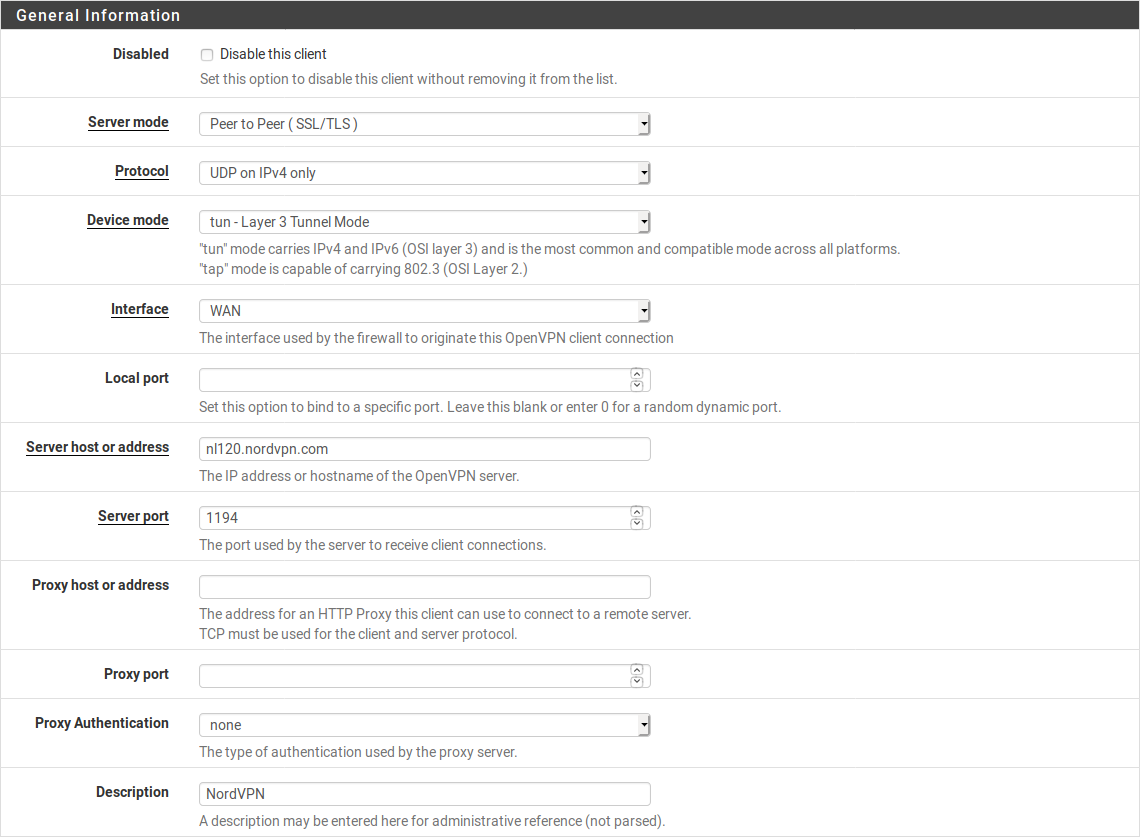

4. Fill in the fields as follows:
Disable this client: leave unchecked;
Server mode: Peer to Peer (SSL/TLS);
Protocol: UDP on IPv4 only (you can also use TCP in the case that you experience issues with UDP);
Device mode: tun – Layer 3 Tunnel Mode;
Interface: WAN;
Local port: leave blank;
Server host or address: the hostname of the server recommended to you (in our case, it’s nl120.nordvpn.com);
Server port: 1194 (use 443 if you use TCP);
Proxy host or address: leave blank;
Proxy port: leave blank;
Proxy Authentication: none;
Description: Any name you like. We will use NordVPN.

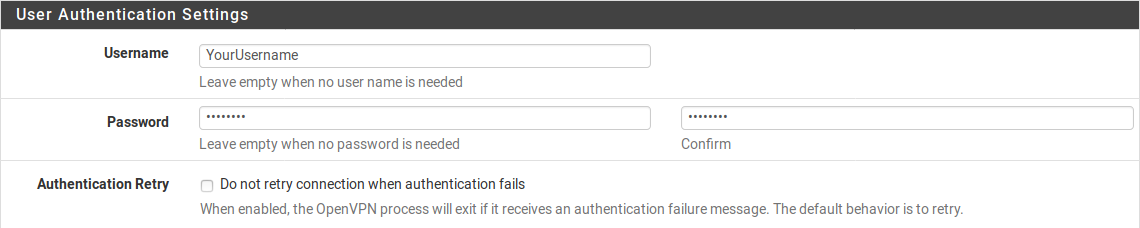

USER AUTHENTICATION SETTINGS
Username: Your NordVPN service username
Password: Your NordVPN service password in both fields.

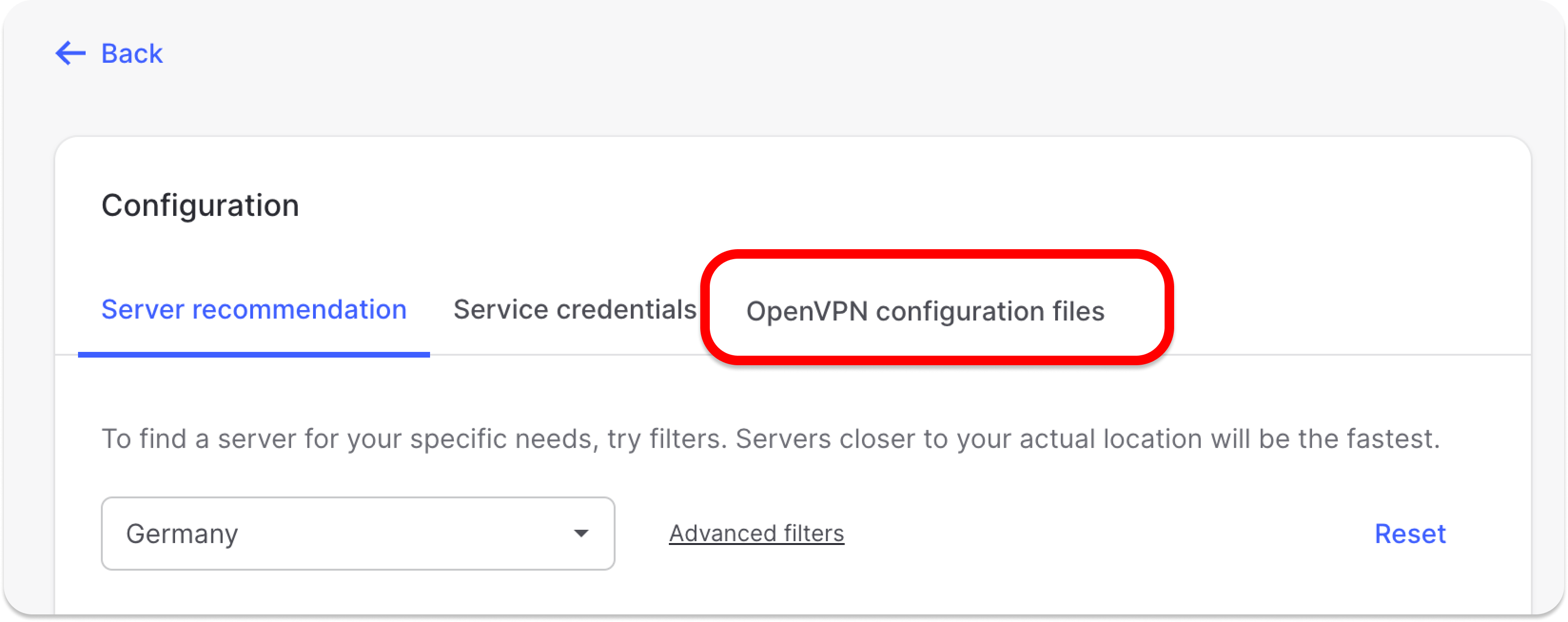

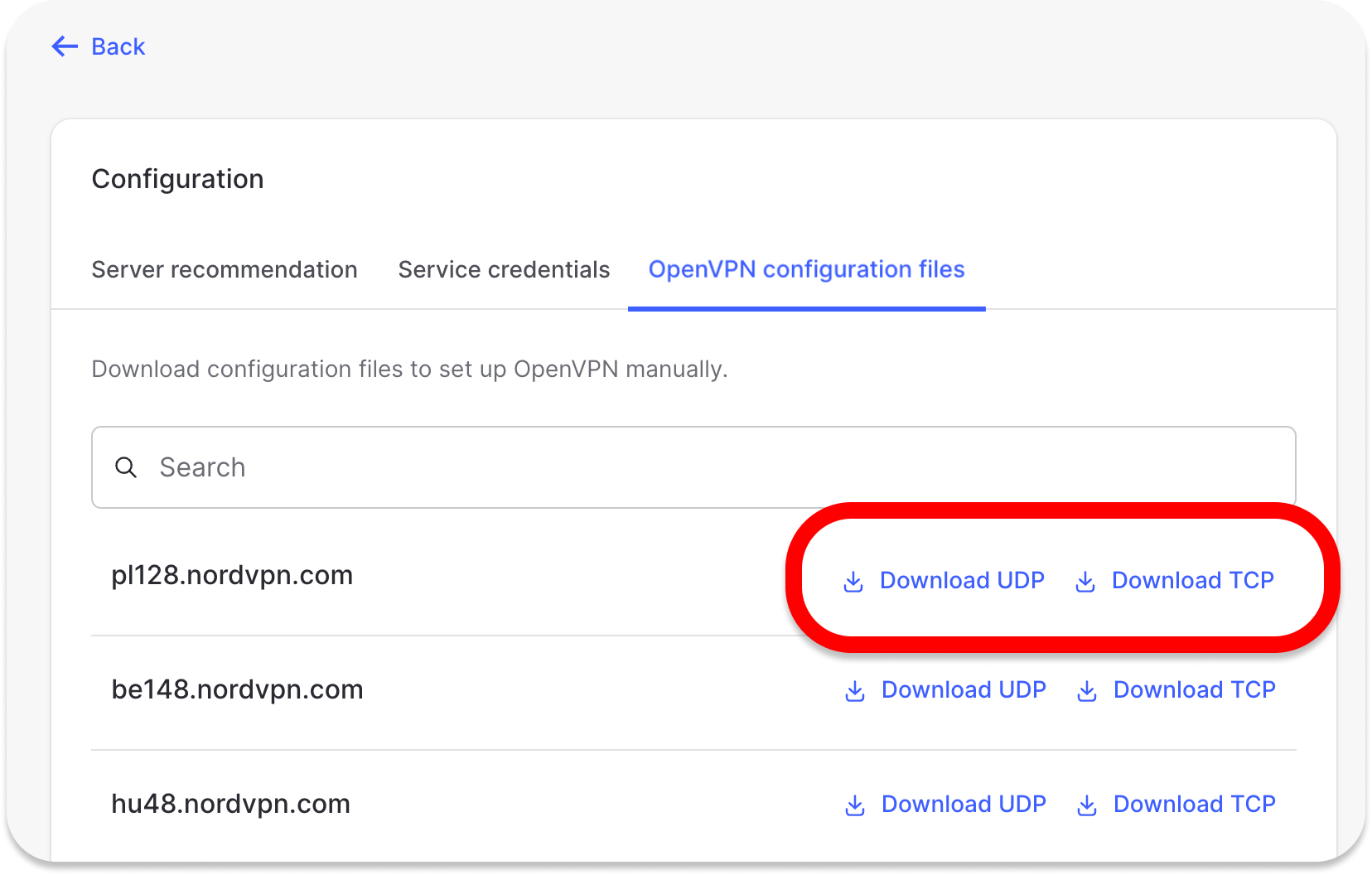

You can find your NordVPN service credentials (service username and service password) in the Nord Account dashboard:

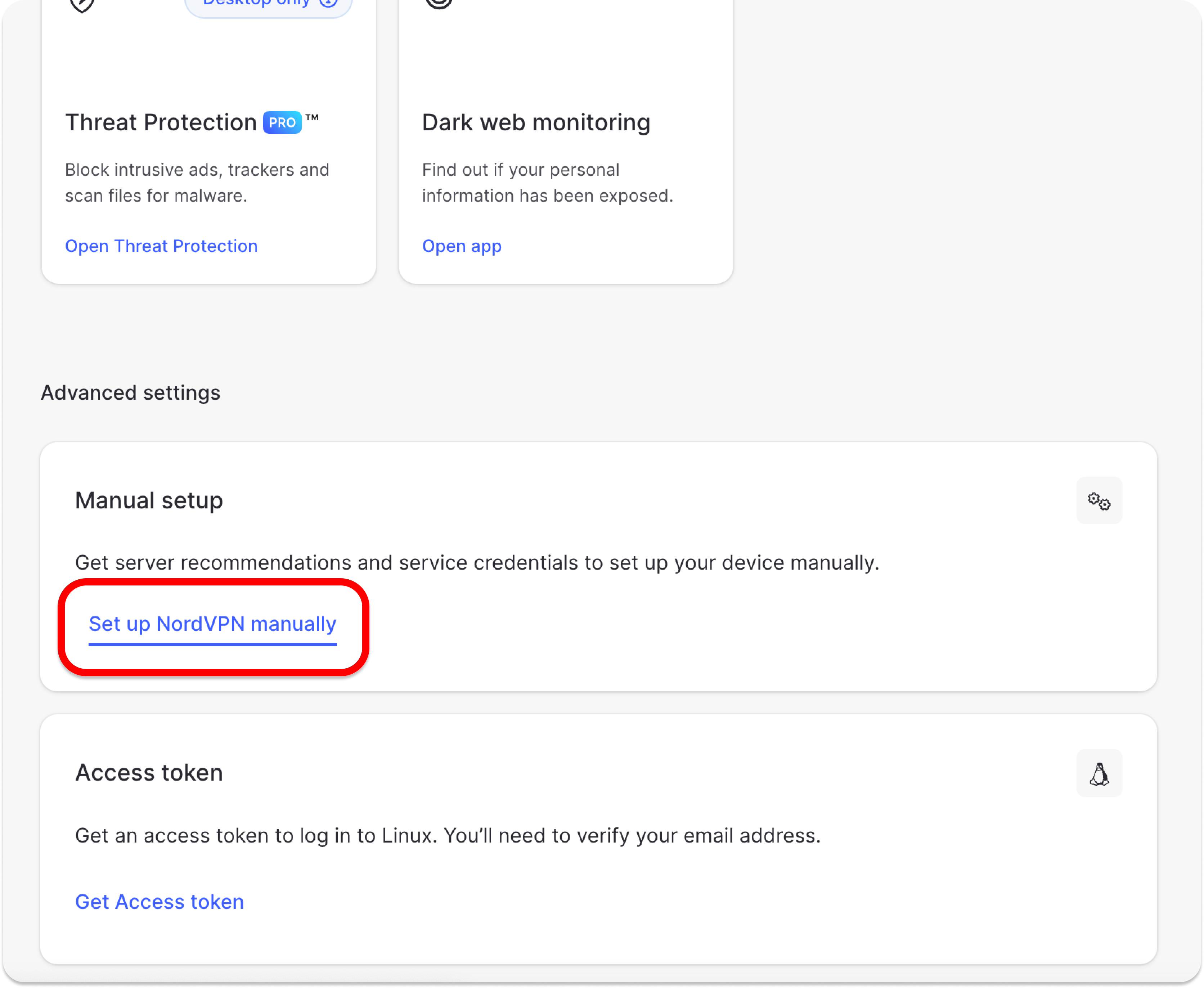

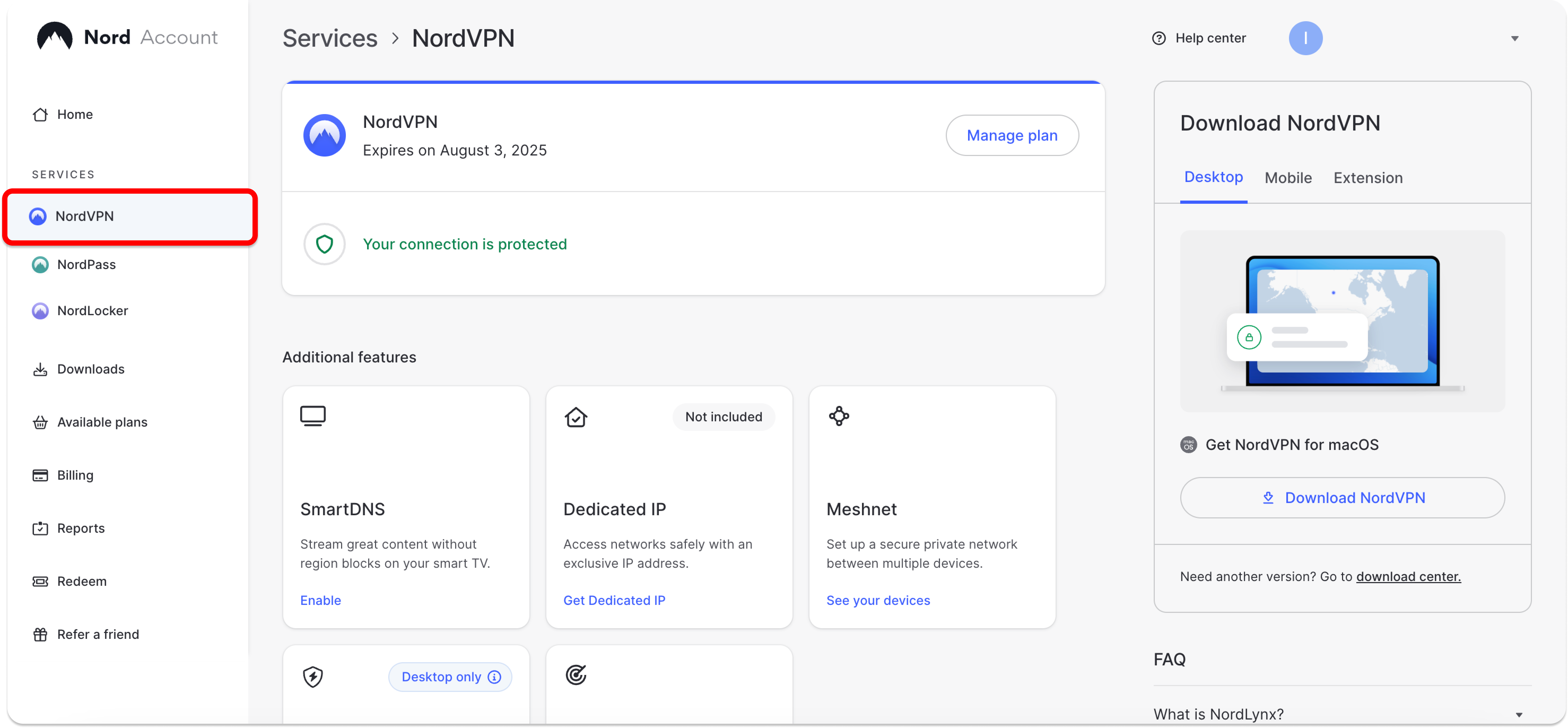

- Click Set up NordVPN manually.
- You will receive a verification code in your email that you use for NordVPN services. Type the code in:

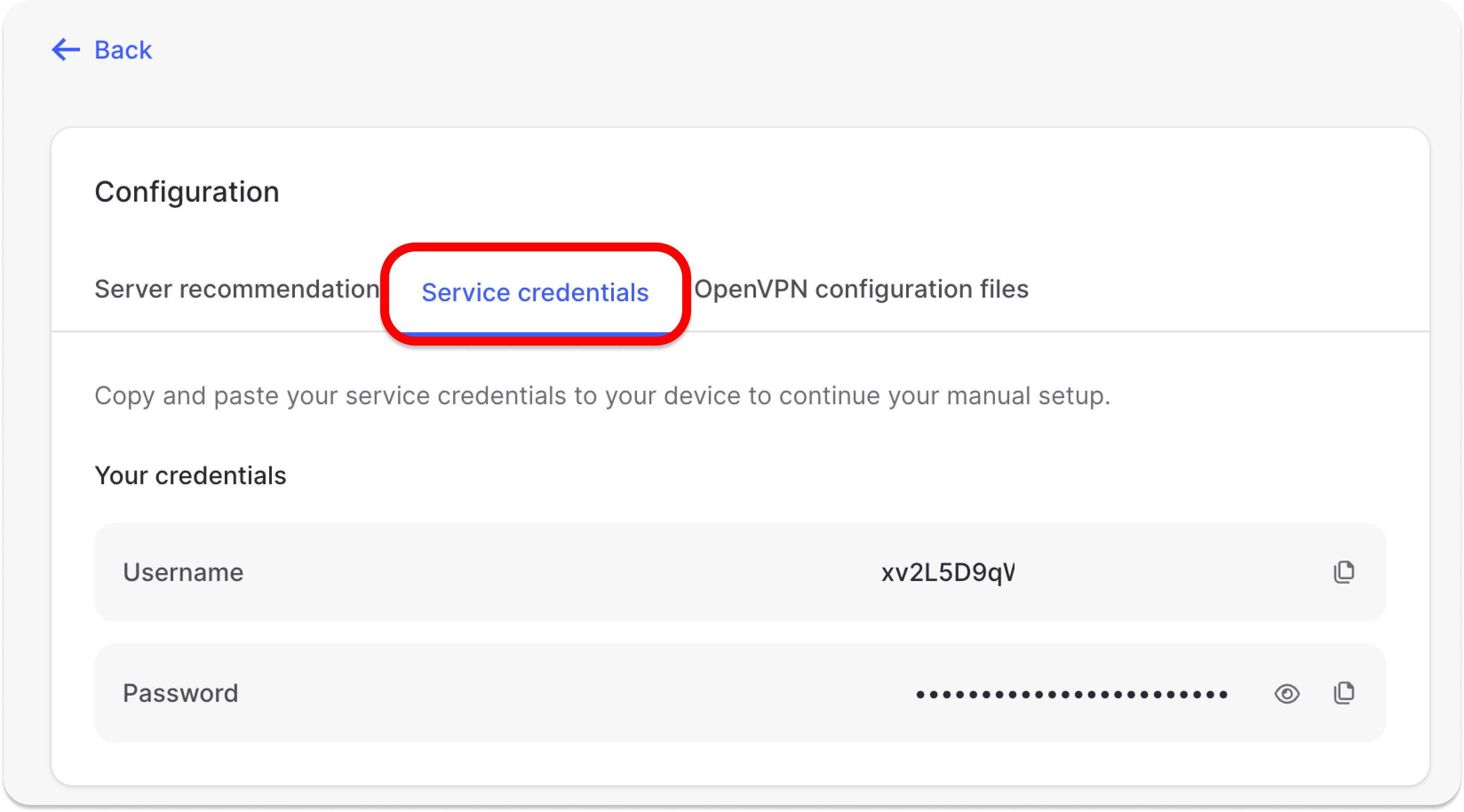

- Copy the credentials using the “Copy” buttons on the right:
Authentication Retry: leave unchecked.

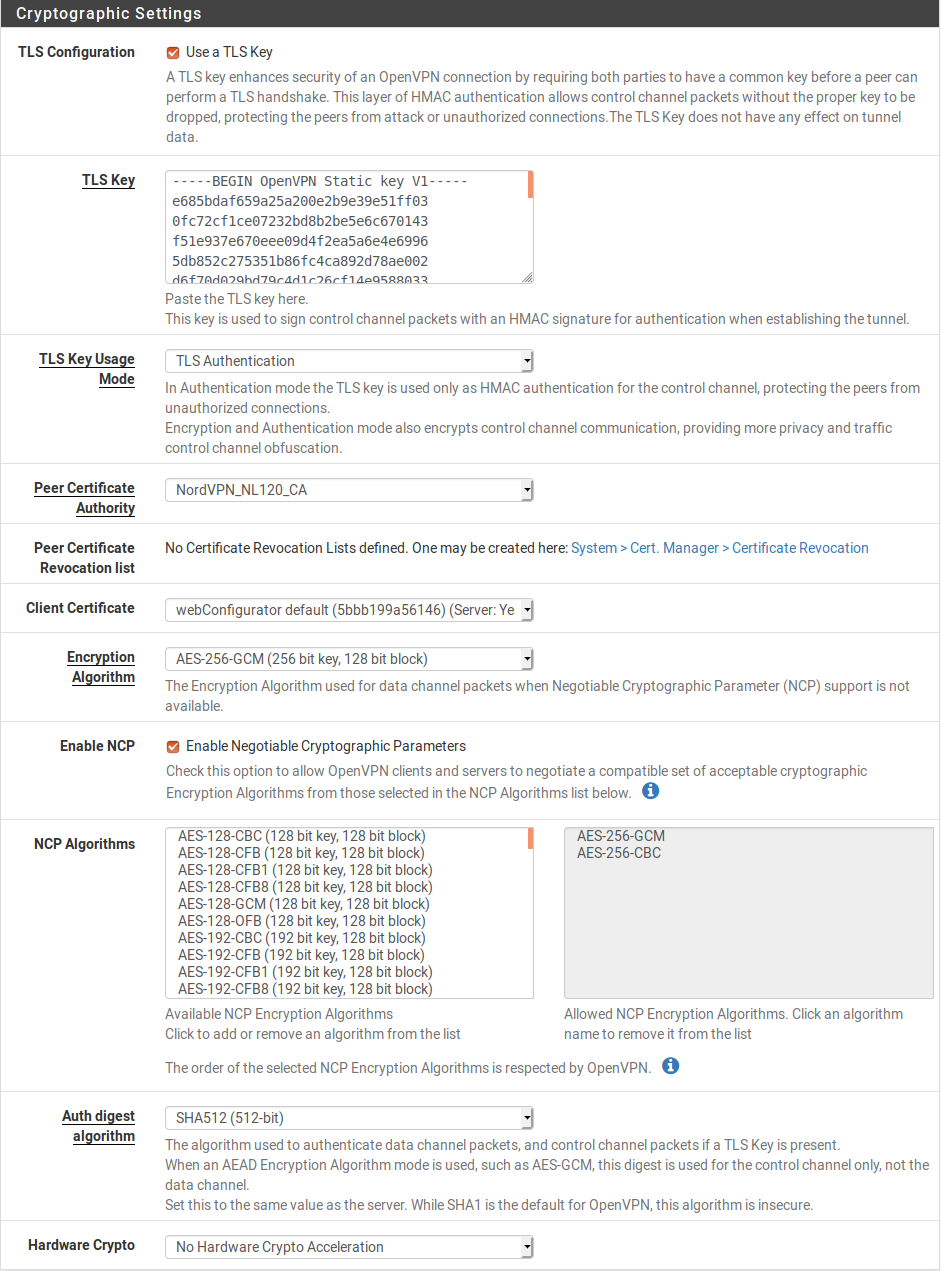

CRYPTOGRAPHIC SETTINGS
TLS Configuration: Check
TLS Key:
-----BEGIN OpenVPN Static key V1-----
e685bdaf659a25a200e2b9e39e51ff03
0fc72cf1ce07232bd8b2be5e6c670143
f51e937e670eee09d4f2ea5a6e4e6996
5db852c275351b86fc4ca892d78ae002
d6f70d029bd79c4d1c26cf14e9588033
cf639f8a74809f29f72b9d58f9b8f5fe
fc7938eade40e9fed6cb92184abb2cc1
0eb1a296df243b251df0643d53724cdb
5a92a1d6cb817804c4a9319b57d53be5
80815bcfcb2df55018cc83fc43bc7ff8
2d51f9b88364776ee9d12fc85cc7ea5b
9741c4f598c485316db066d52db4540e
212e1518a9bd4828219e24b20d88f598
a196c9de96012090e333519ae18d3509
9427e7b372d348d352dc4c85e18cd4b9
3f8a56ddb2e64eb67adfc9b337157ff4
-----END OpenVPN Static key V1-----
TLS Key Usage Mode: TLS Authentication
Peer certificate authority: NordVPN_NL120_CA
Peer Certificate Revocation list: do not define
Client certificate: webConfigurator default (59f92214095d8) (Server: Yes, In Use) (note that the numbers on your machine could be different)
Encryption Algorithm: AES-256-GCM
Enable NCP: Check the box
NCP Algorithms: AES-256-GCM and AES-256-CBC
Auth digest algorithm: SHA512 (512-bit)
Hardware Crypto: No Hardware Crypto Acceleration

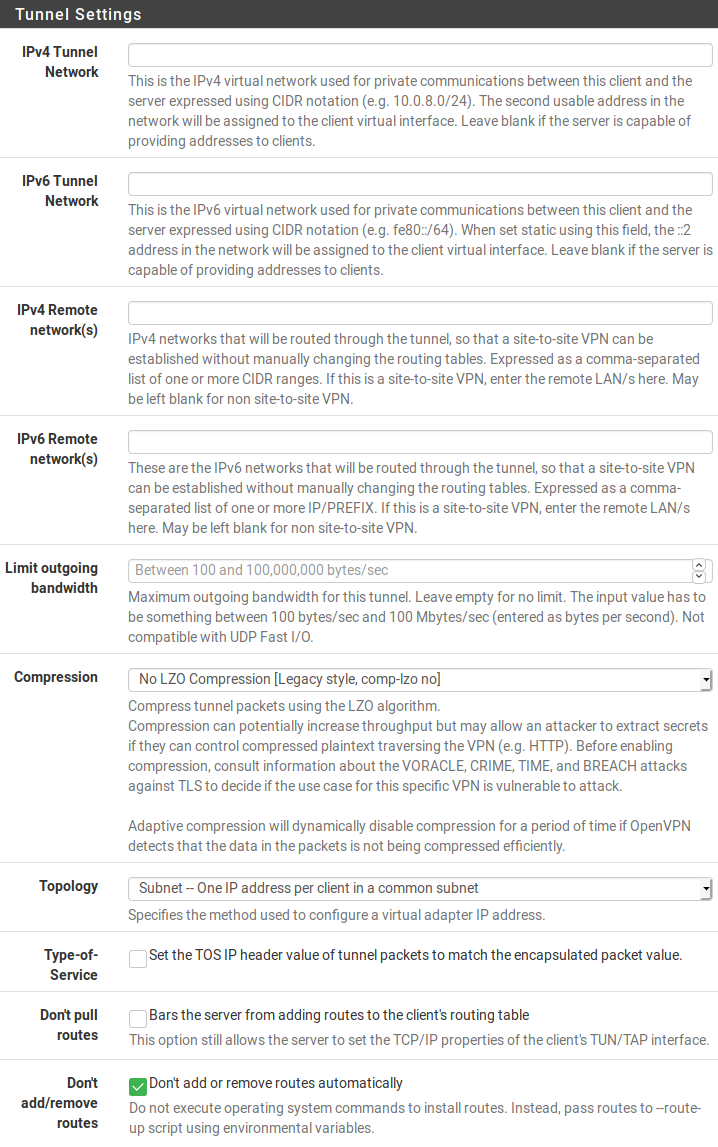

TUNNEL SETTINGS
IPv4 tunnel network: leave blank
IPv6 tunnel network: leave blank
IPv4 remote network(s): leave blank
IPv6 remote network(s): leave blank
Limit outgoing bandwidth: leave blank
Compression: No LZO Compression [Legacy style,comp-lzo no]
Topology: Subnet – One IP address per client in a common subnet
Type-of-service: leave unchecked
Don’t pull routes: leave unchecked
Don’t add/remove routes: check the box

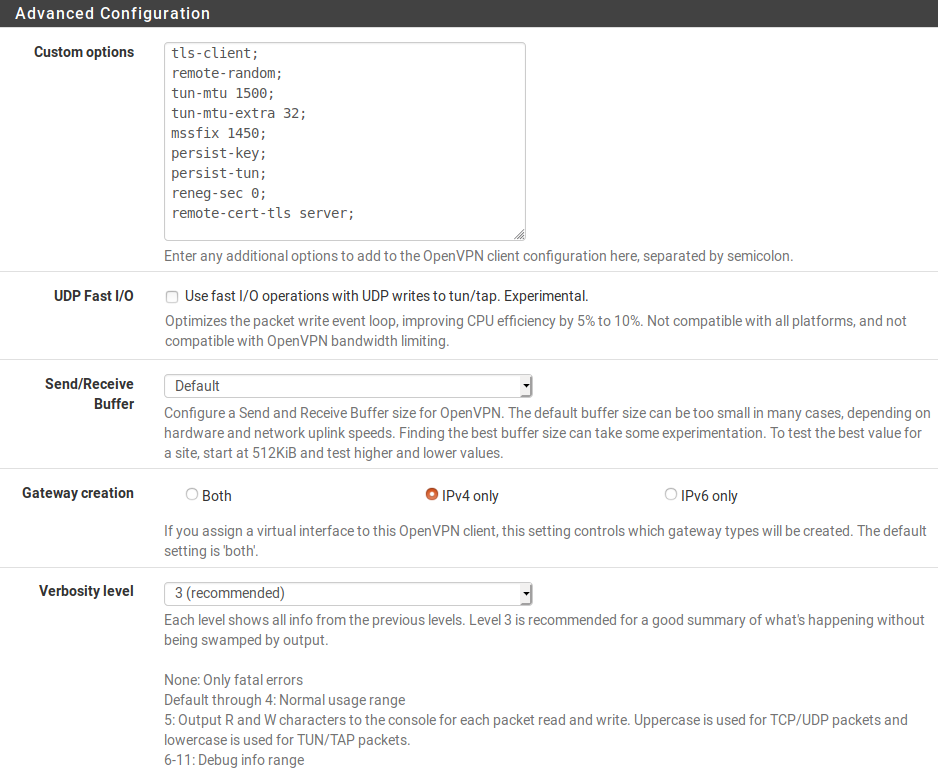

ADVANCED CONFIGURATION
Custom Options
tls-client;
remote-random;
tun-mtu 1500;
tun-mtu-extra 32;
mssfix 1450;
persist-key;
persist-tun;
reneg-sec 0;
remote-cert-tls server;
UDP FAST I/O: leave unchecked
Send/Receive Buffer: Default
Gateway creation: IPv4 only
Verbosity level: 3 (recommended)

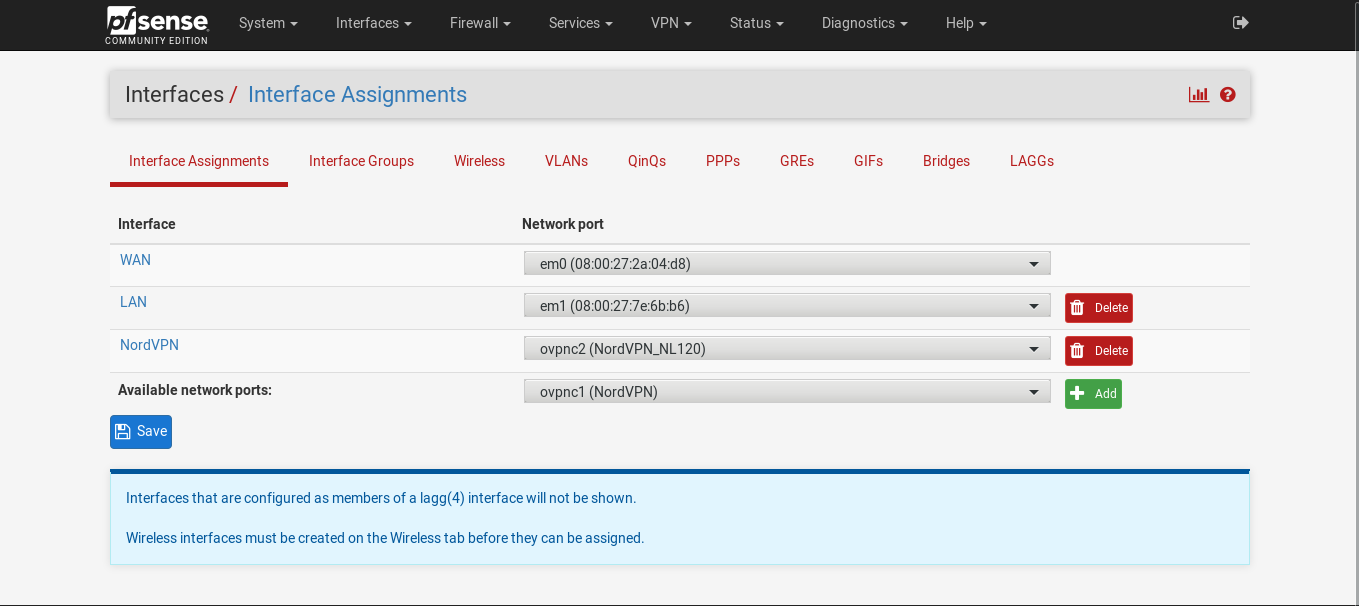

5. Navigate to Interfaces > Interface Assignments and Add the NordVPN NL120 interface.

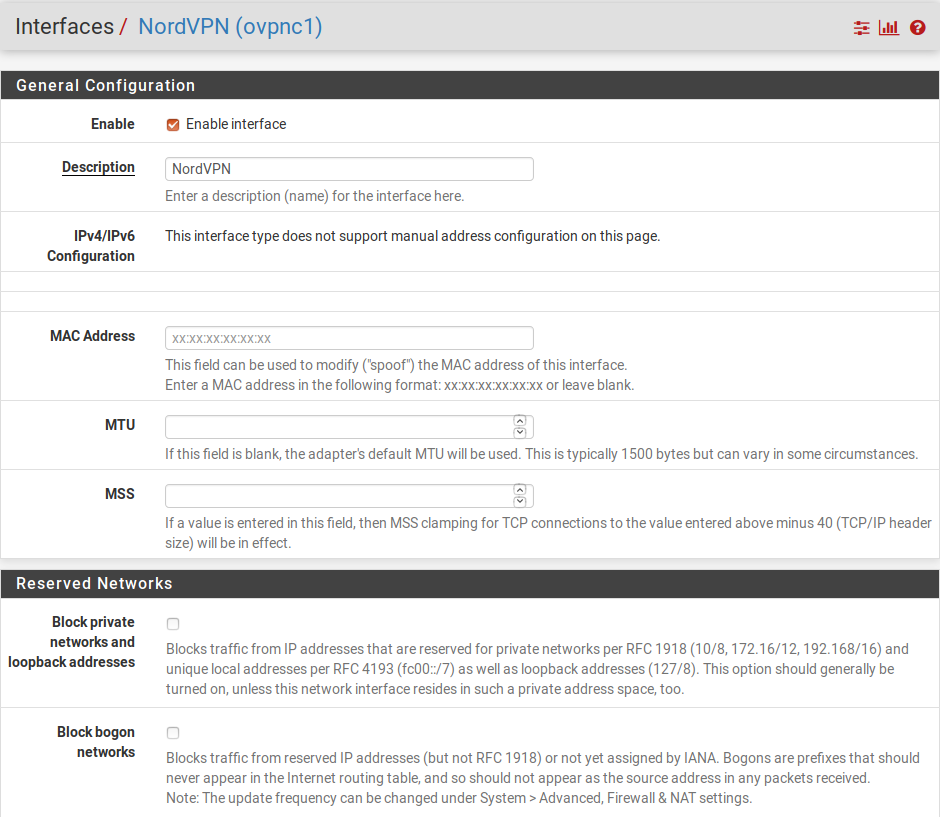

6. Press on the OPT1 to the left of your assigned interface and fill in the following information:
Enable: check
Description: NordVPN
Mac Address: leave blank
MTU: leave blank
MSS: leave blank
Do not change anything else. Just scroll down to the bottom and press Save.

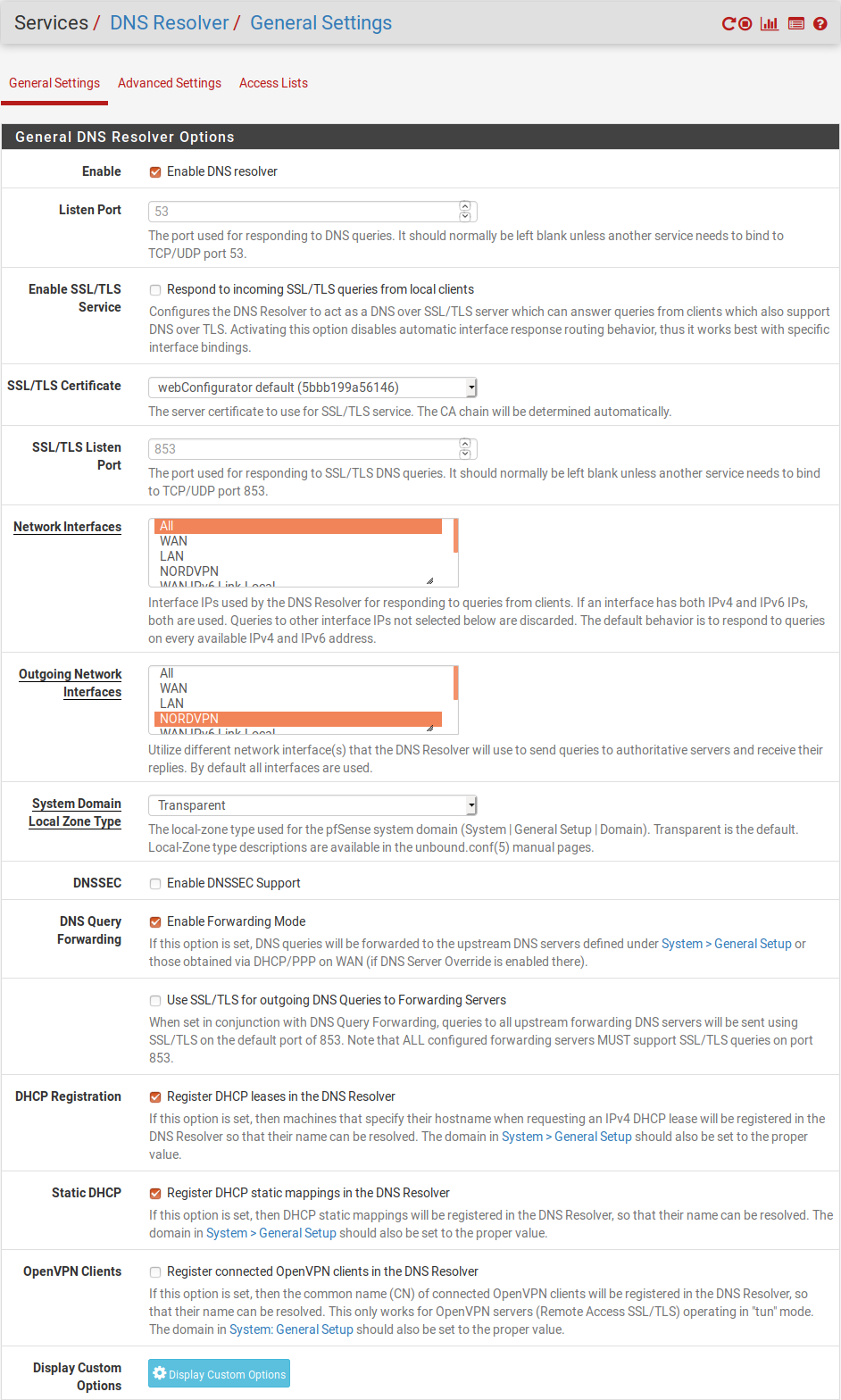

7. Navigate to Services -> DNS Resolver -> General Settings
Enable: check the box
Listen port: leave as is
Enable SSL/TLS Service: uncheck
SSL/TLS Certificate: webConfigurator default (59f92214095d8) (Server: Yes, In Use) (note that the numbers on your machine could be different);
SSL/TLS Listen Port: leave as is
Network Interfaces: All
Outgoing Network Interfaces: NordVPN
System Domains Local Zone Type: Transparent
DNSSEC: uncheck
DNS Query Forwarding: check
DHCP Registration: check
Static DHCP: check
Click Save.

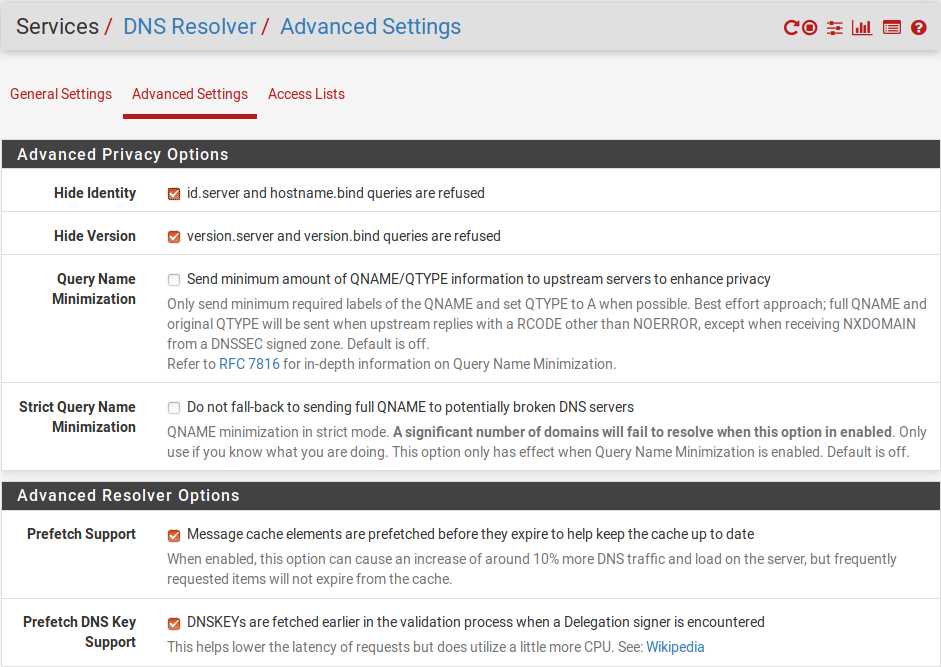

8. While in DNS Resolver, select Advanced Settings at the top and fill in the following:
ADVANCED PRIVACY OPTIONS:
Hide Identity: check
Hide Version: check
ADVANCED RESOLVER OPTIONS:
Prefetch Support: check
Prefetch DNS Key Support: check
Click Save.
9. Navigate to Firewall > NAT > Outbound and select Manual Outbound NAT rule generation. Press Save. Four rules will appear. Leave all the rules untouched and add a new one.

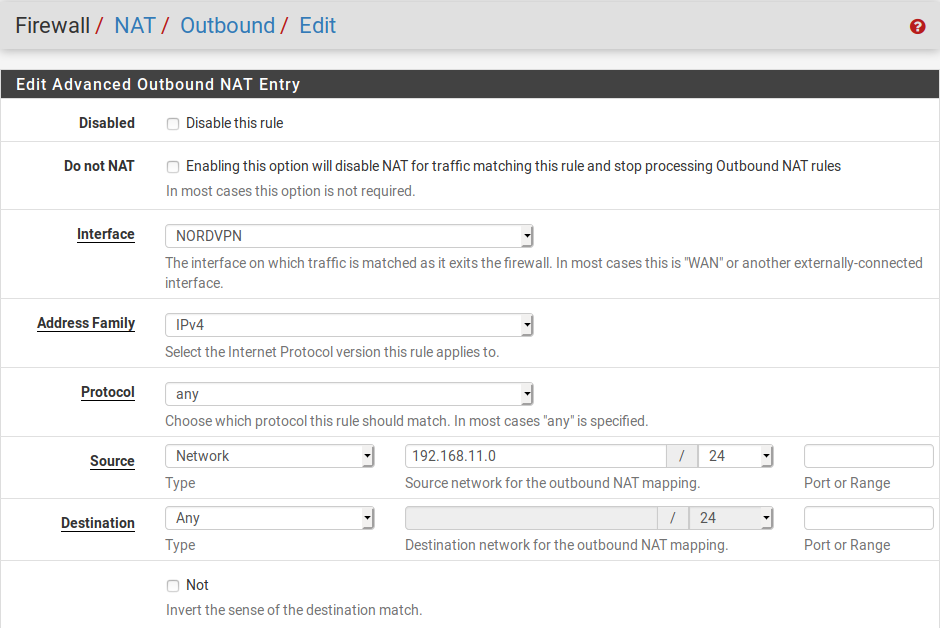

- Interface: NordVPN.
- Source: your LAN subnet.

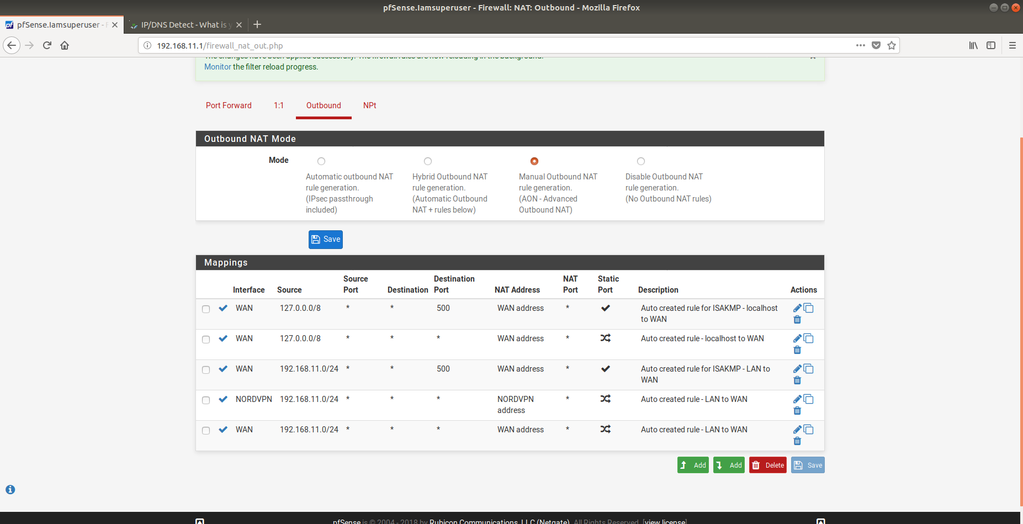

- Click Save. At the end, it should look like this:
10. Navigate to Firewall > Rules > LAN and delete the IPv6 rule. Also, edit the IPv4 rule.
- Press on Show Advanced Options
- Change Gateway to NordVPN
- Click Save.

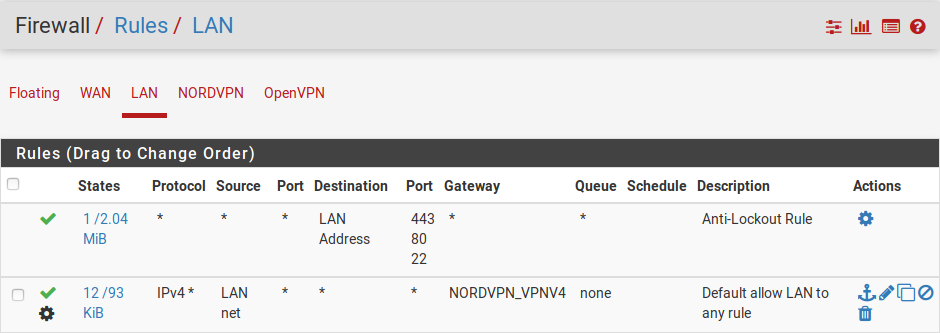

Now it should look like this:

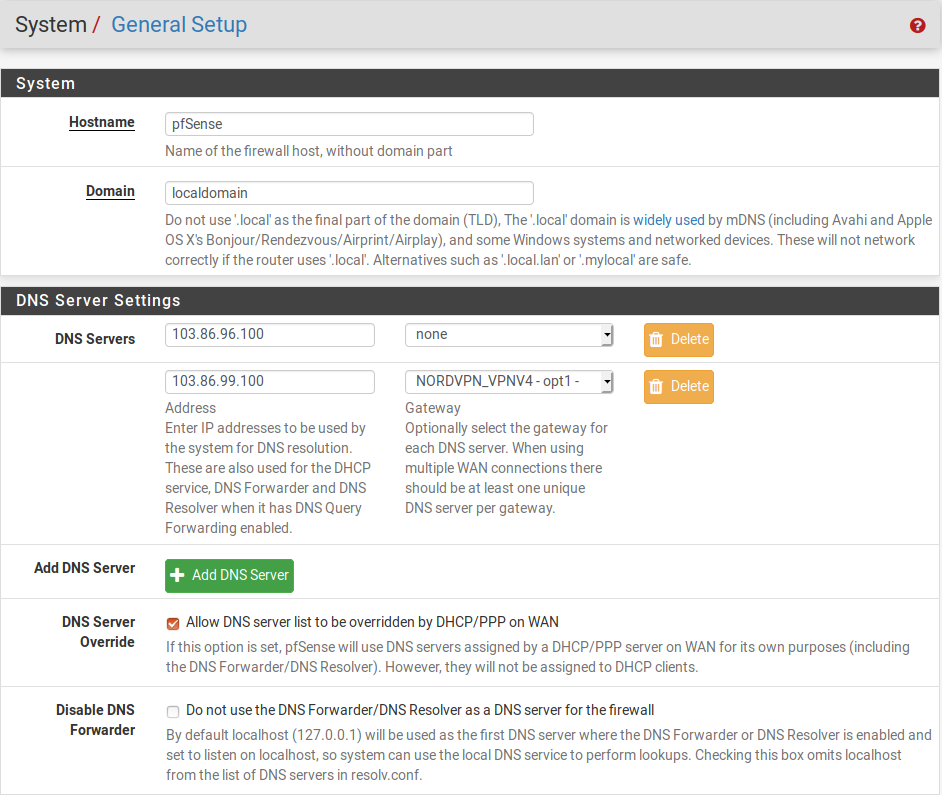

11. Go to System > General Setup and fill in the fields as follows:
DNS Server 1: 103.86.96.100; none
DNS Server 2: 103.86.99.100; NordVPN_VPNV4-…
Click Save.

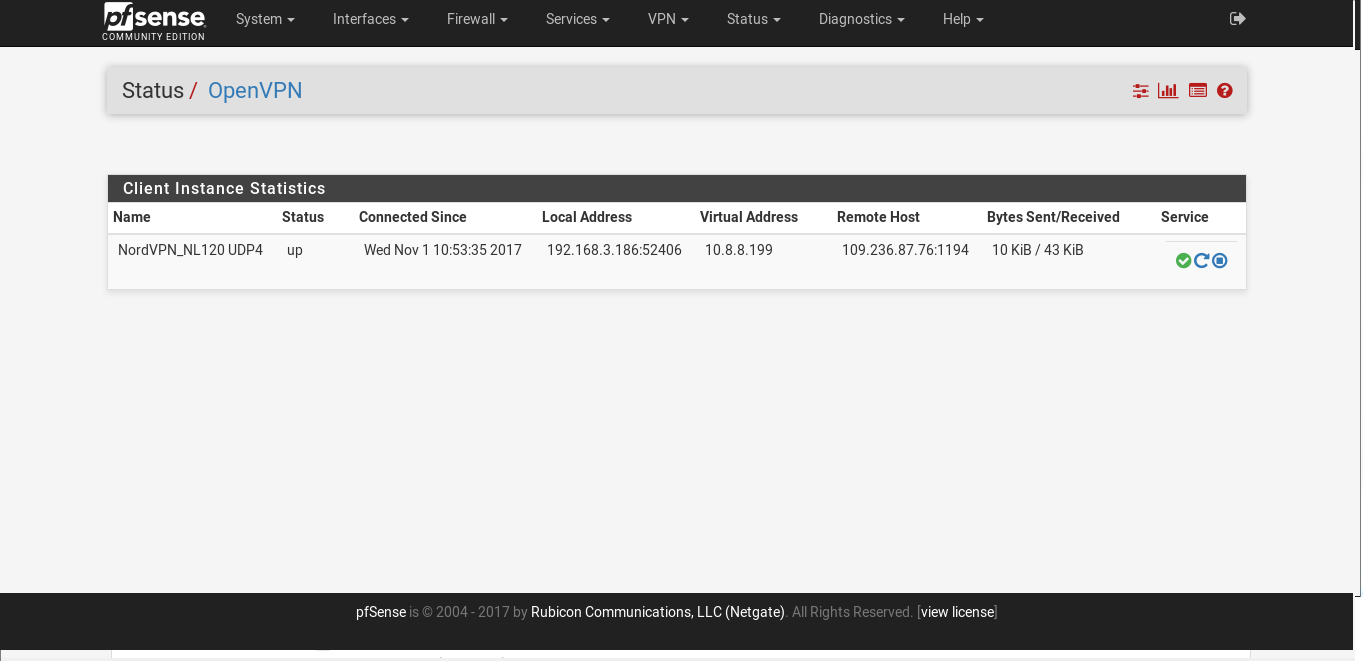

12. Now navigate to Status > OpenVPN. The status and it should state that the service is “up”.

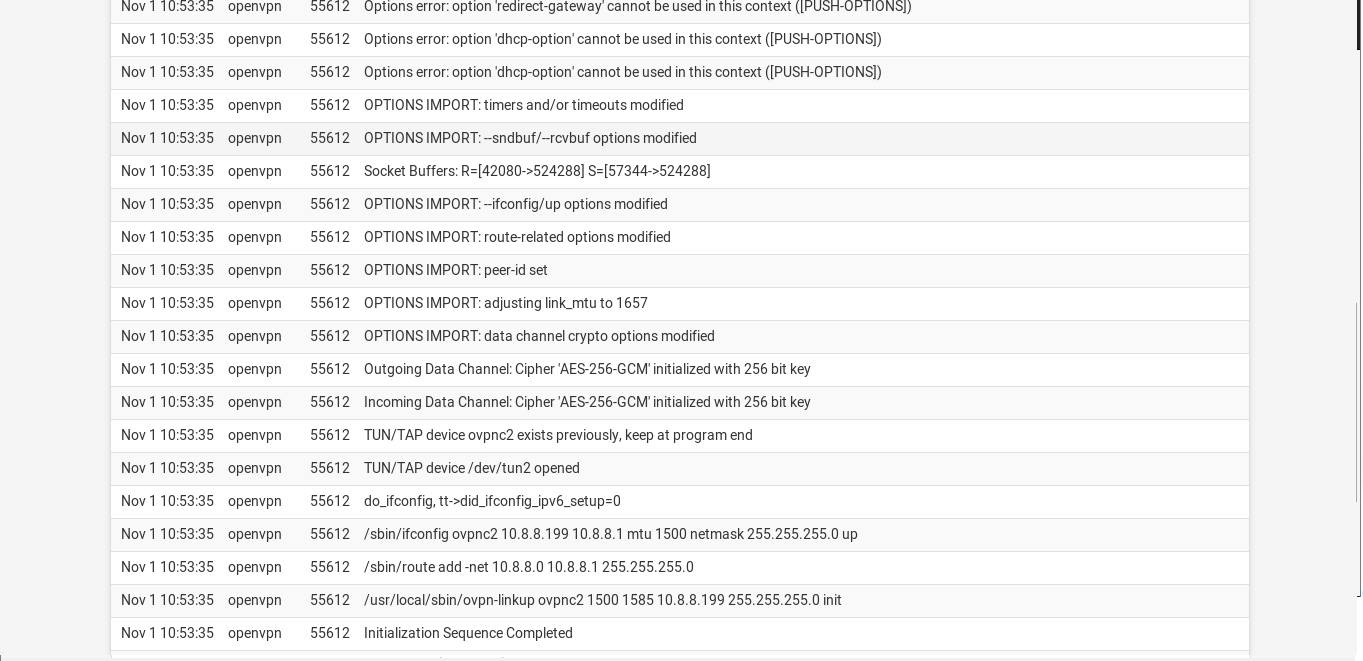

13. You can also check the connection log file under Status > System Logs > OpenVPN:
That’s it! pfsense VPN setup is complete, and you should now have a VPN connection. In case you woud like to setup selective VPN routing, click here.
