How to configure QNAP 4.4.2 NAS

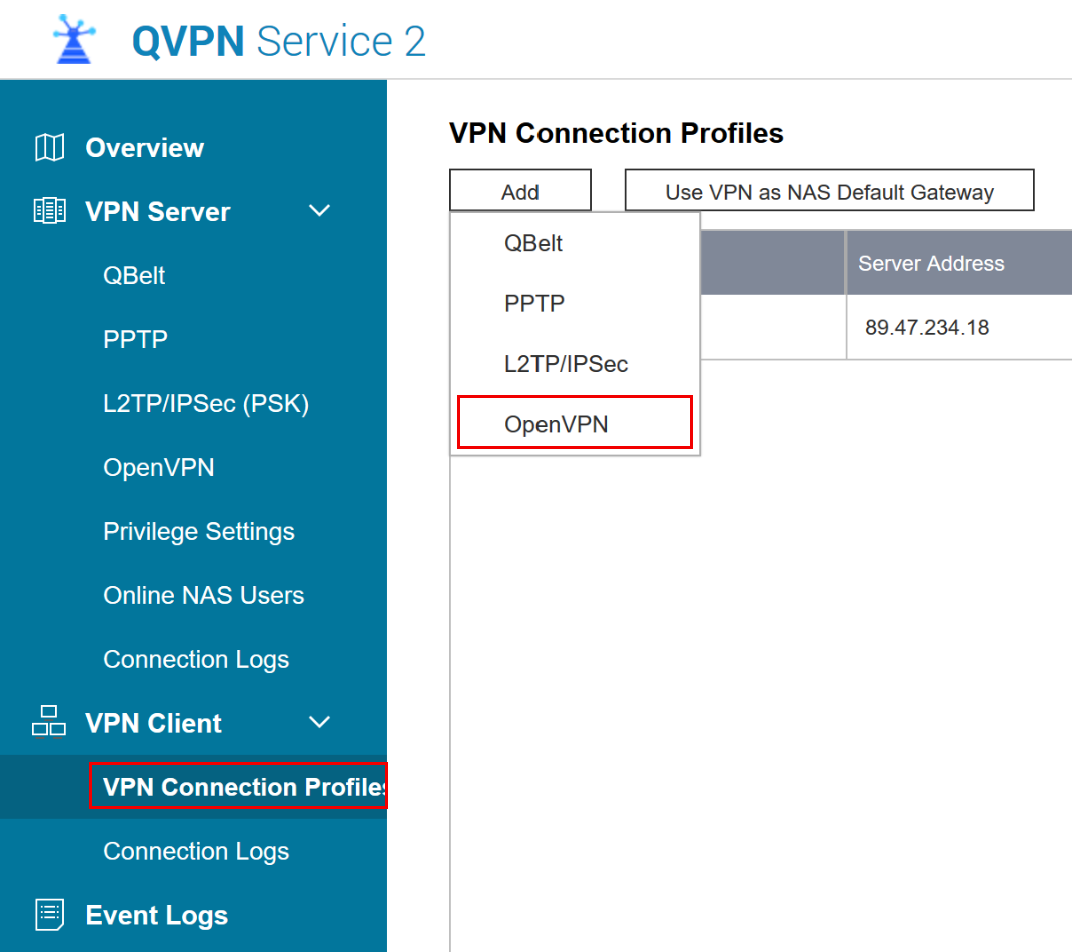

1. Access your QNAP and select QVPN Service -> VPN Client -> VPN Connection Profiles -> Add -> OpenVPN.

QNAP QVPN Service 2 with VPN Connection Profiles section showing Add dropdown open with OpenVPN option highlighted


2. Import one of our .ovpn files by following the steps below:

Follow the steps below to find the manual connection configuration files:

  1. Log into your Nord Account, and click NordVPN.

    Nord Account dashboard with NordVPN selected in the left sidebar under Services

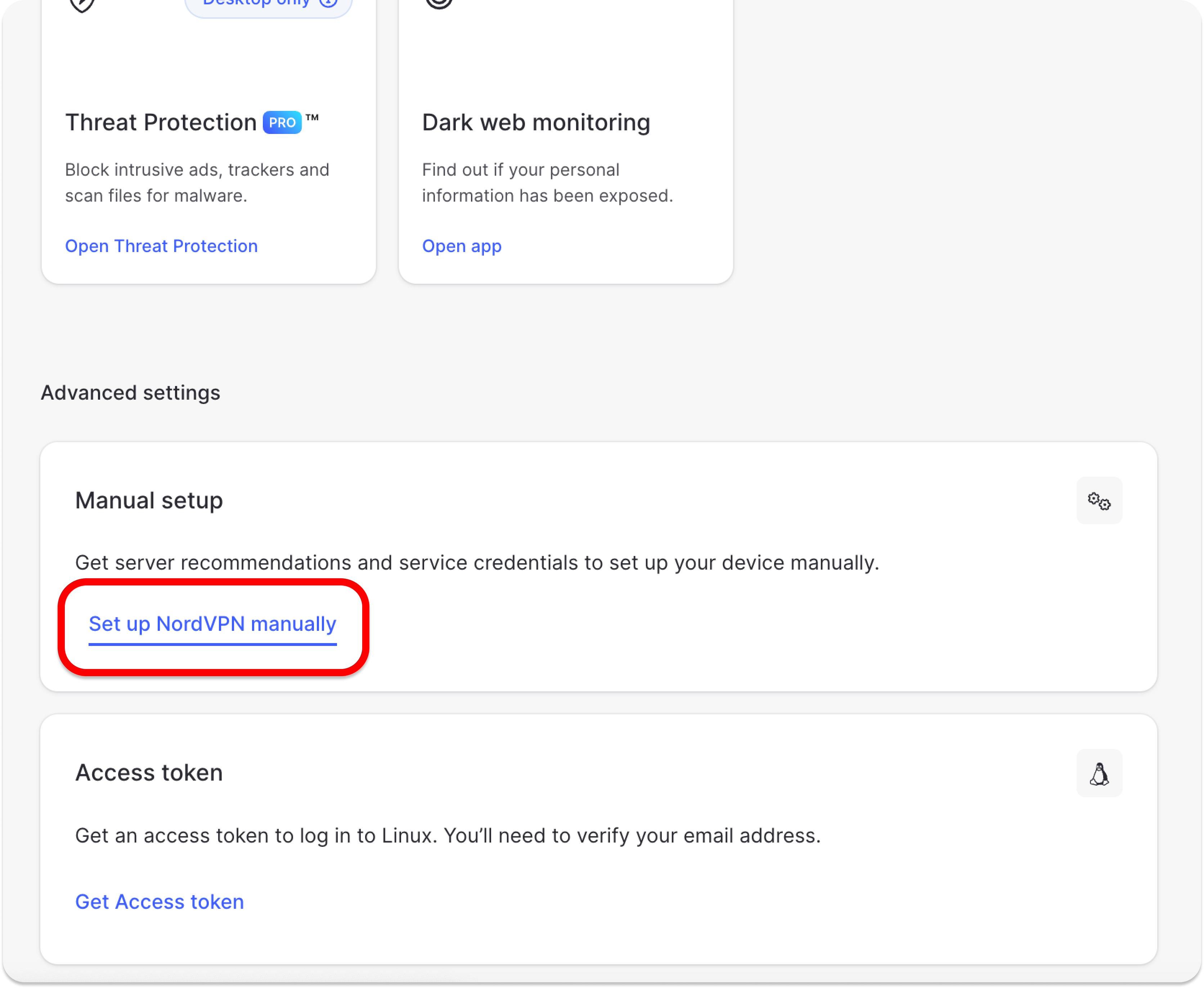

  2. Scroll down to Advanced Settings and click Set up NordVPN manually.

    Nord Account Advanced Settings section with 'Set up NordVPN manually' link highlighted in red

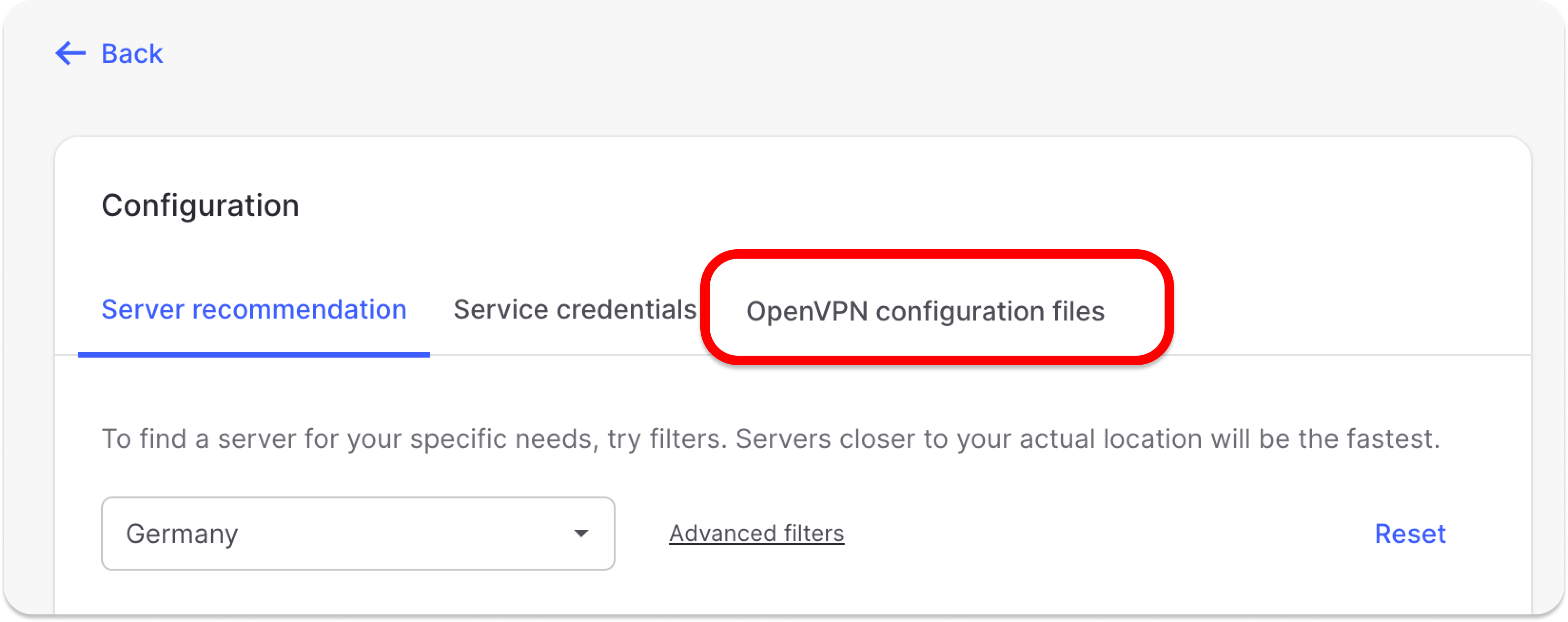

  3. Select the OpenVPN configuration files tab.
    Nord Account Configuration page with 'OpenVPN configuration files' tab highlighted in red

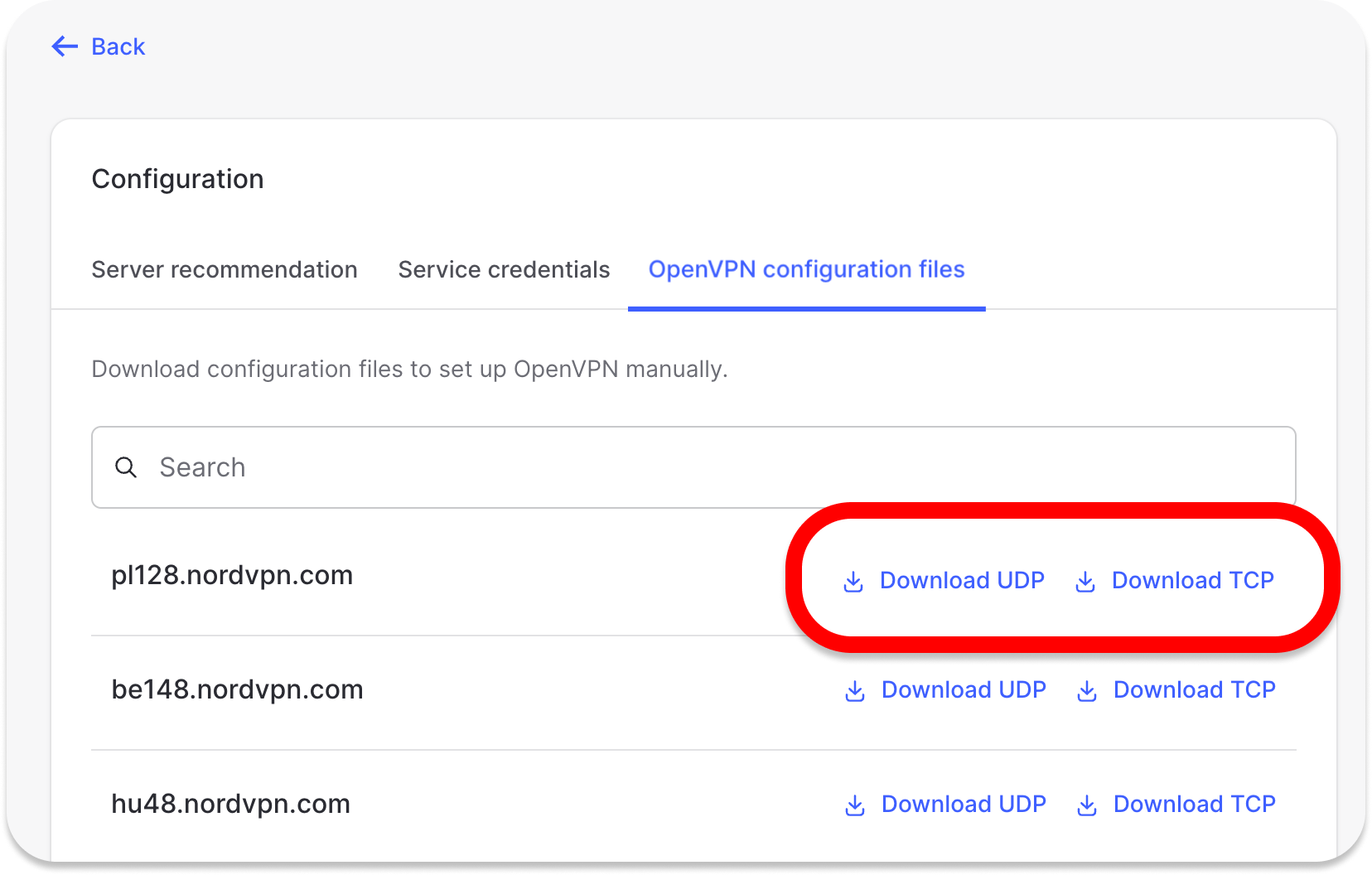

  4. Find the server you wish to connect to by using the Search bar or by scrolling down and download it by clicking Download UDP or Download TCP.
    Nord Account OpenVPN configuration files tab showing server list with 'Download UDP' and 'Download TCP' buttons highlighted

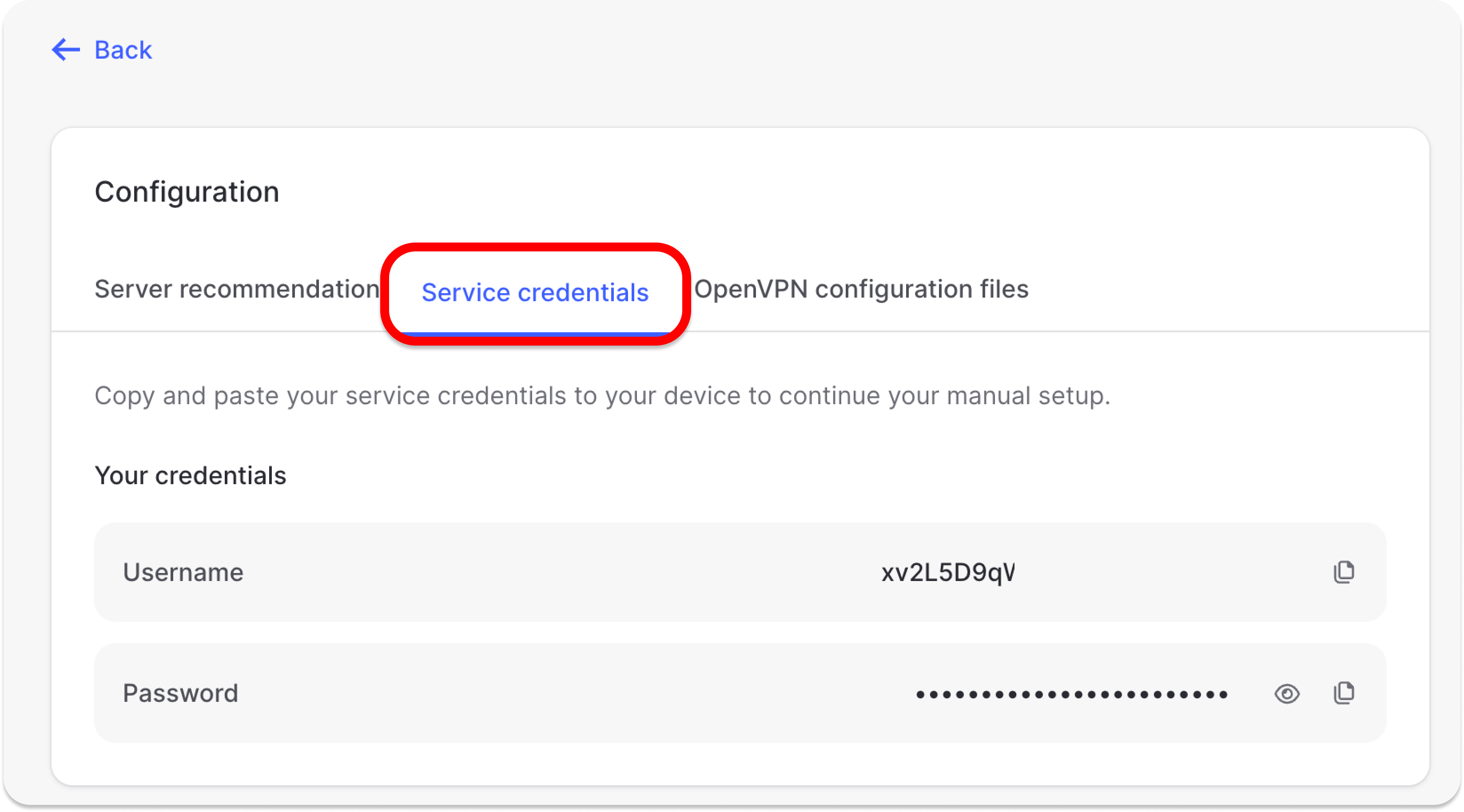

  5. When connecting to OpenVPN & IKEv2 manually, you're going to need to use the Username and Password from the Service credential tab.
    Nord Account Configuration page showing 'Service credentials' tab highlighted with Username and Password fields

3. Enter your NordVPN service credentials and click Apply:

QNAP QVPN Service 2 OpenVPN profile settings form with Profile Name, Username, Password, Server Address, and subnet mask fields

You can find your NordVPN service credentials (service username and service password) in the Nord Account dashboard:

Follow the steps below to find the service credentials for manual connection setup:

  1. Log into your Nord Account, click NordVPN, and, under Manual setup, click on Service credentials. Here you'll find the Username and Password needed to connect manually.

    Nord Account Configuration page showing 'Service credentials' tab highlighted with Username and Password fields

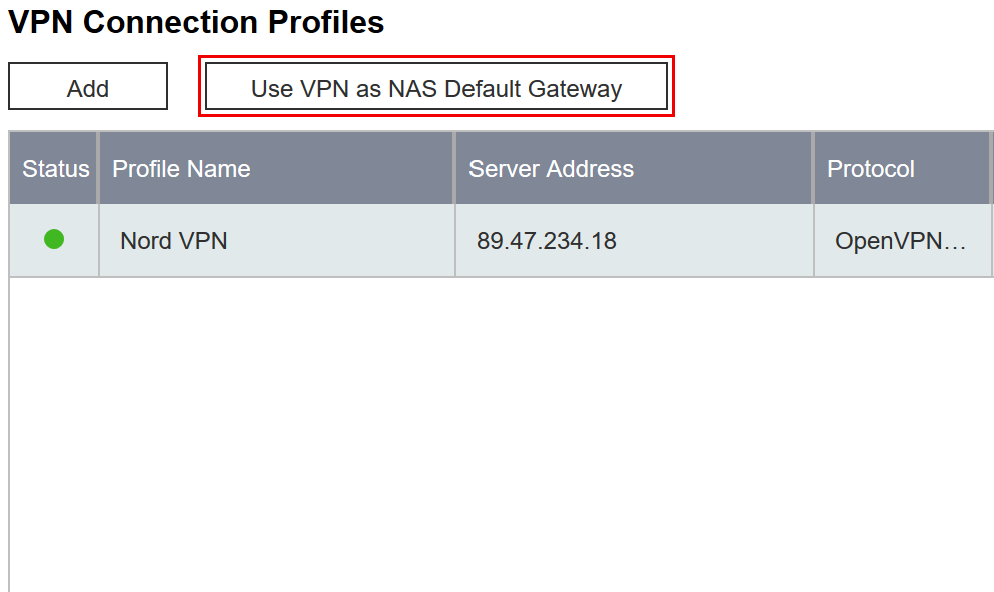

4. You should see the new connection visible. Select the profile and click Use VPN as NAS Default Gateway.

QNAP VPN Connection Profiles list showing Nord VPN profile connected, with 'Use VPN as NAS Default Gateway' button highlighted

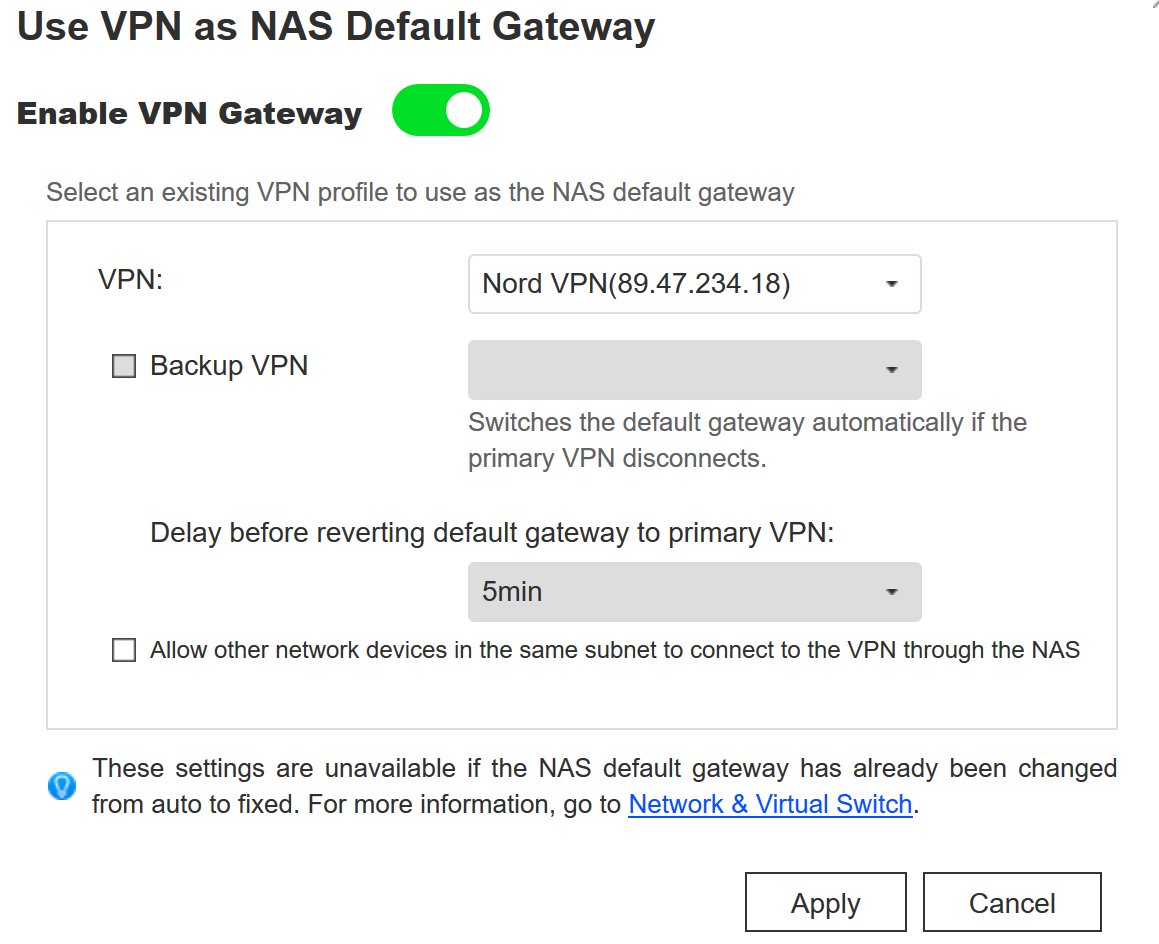

5. Click on an Enable VPN Gateway slider.

QNAP 'Use VPN as NAS Default Gateway' settings with Enable VPN Gateway toggle turned on and Nord VPN profile selected


6. You should be connected to a VPN after a few moments.

Check whether the VPN connection is working:

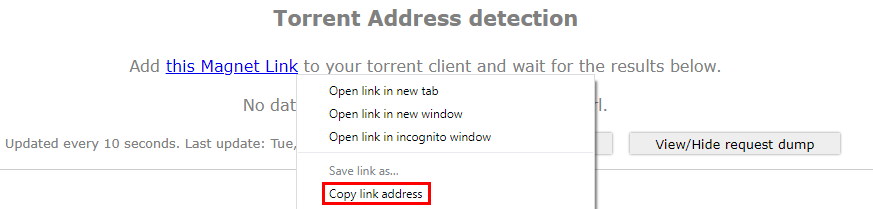

  1. Go to this website and copy the location of the magnet link. Do not close this page just yet.

    ipleak.net Torrent Address detection section with a right-click context menu showing 'Copy link address' option highlighted

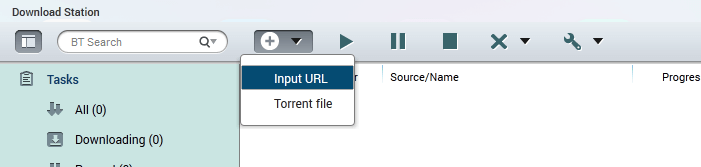

  2. Now open Download Station on your QNAP user interface and add a URL to your downloads list.

    QNAP Download Station toolbar with the add dropdown showing 'Input URL' option highlighted

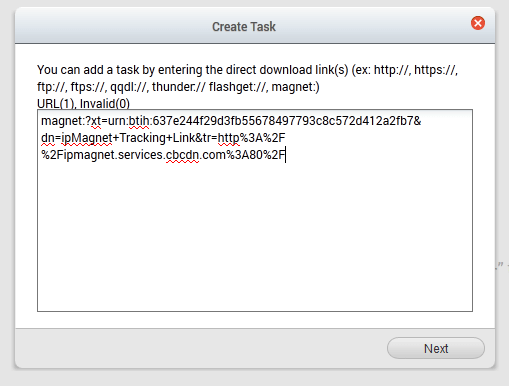

  3. In the new window, paste the Magnet link you have copied earlier and click Next. In the next window, hit Apply without making any changes.

    QNAP Download Station Create Task dialog with the magnet link URL pasted in the URL field

  4. Now you can go back to the website you have copied your magnet link from and see what IP address your QNAP is using. It should show the IP address of the server you are connected to.

    ipleak.net Torrent Address detection results showing NordVPN server IP address 134.19.189.124 confirmed and highlighted in a red box
